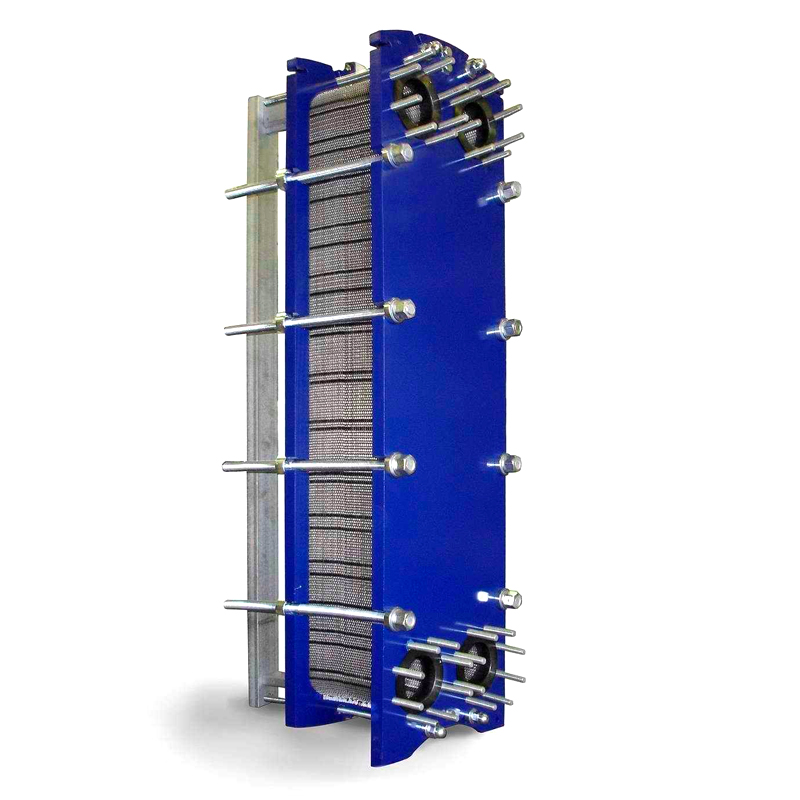

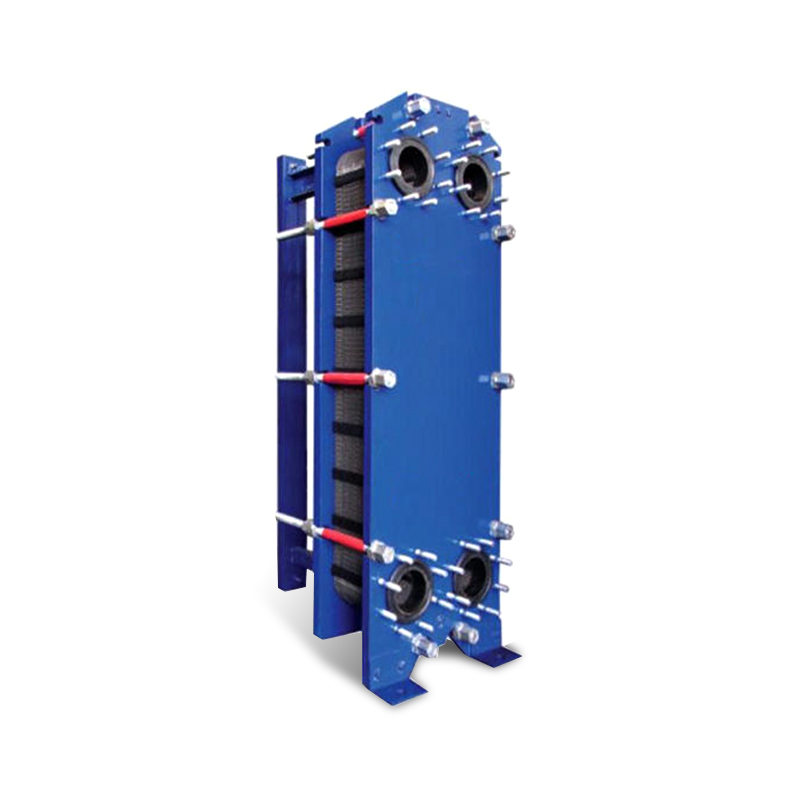

Standard Gasketed type plate heat exchanger

Working principle:

A plate and frame heat exchanger as known as gasketed plate heat exchanger is a high efficiency heat exchanger that assembled from metal sheets with corrugated pattern and different kind of gaskets.  Plate heat exchangers are the ideal equipment for heat exchange between liquid-liquid and liquid-vapor.In the case of the same pressure loss, the heat transfer coefficient is 3-5 times higher than that of the tube heat exchanger, but the floor space is one-third of the tube heat exchanger, and the heat recovery rate can be as high as 90% or more.

Structure

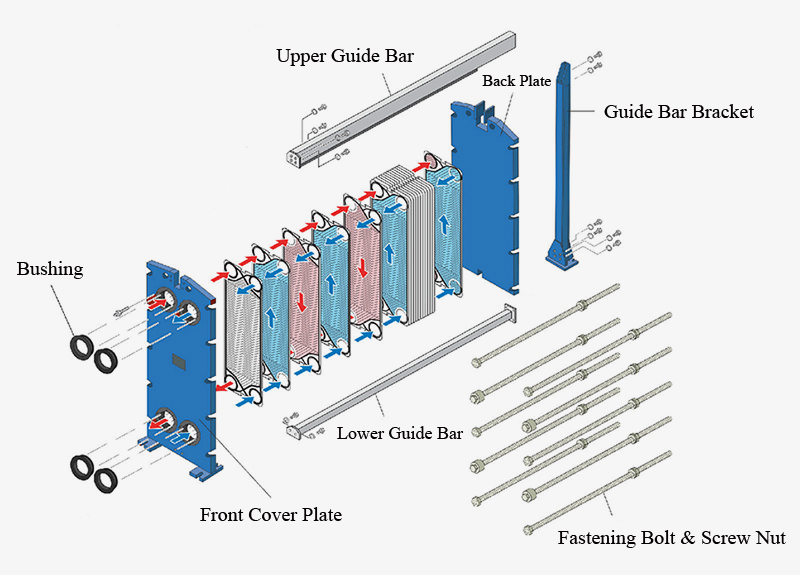

Gasketed plate heat exchanger is mainly composed of plates, sealing gaskets, fixed plate and movable plate, carrying bar, guiding bar, column, support column tighting bolts and nuts, frame feet, etc.

Advantages

1. High heat transfer coefficient

2. Easy to repair and cleaning

3. COmpact structure

4. Saving Space, light weight

5. Easy to change heat transfer surface or plate arrangement

6. Small temperaturre difference

Particulars Required for Quotation

To enable our representative to make a specific quotation, enquiries should be accompanied by the following particulars:

– Flow rates or heat load required

– Temperature program

– Physical properties of liquids in question (if not water)

– Desired working pressure

– Maximum permitted pressure drop

– Available Steam Pressure
